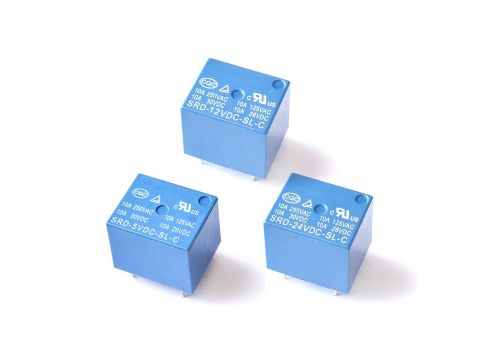

Relay SRD-12VDC-SL-C

  • Mã SP:
    LKPK43
  • Giá:
    5,000VND
  • Lượt xem:
    1255
  • Số lượng:
  • Mô tả:
    Songle 5P 20A

Thông số kĩ thuật

  • Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
  • Contact resistance: <=100m (ohm)
  • Electrical life: 100,000
  • Mechanical life: 10,000,000
  • Coil rated voltage: 3-48VDC
  • Coil power: 0.36W, 0.45W
  • Coil pick-up voltage: <=75%
  • Coil drop-out voltage: >=10%
  • Ambient temperature: -25 degrees Celsius to +70 degrees Celsius -
  • Coil and contacts:1500VAC/min
  • Contact and contacts: 1000VAC/min
  • Insulation resistance: >=100M ohm
  • Mounting form: PCB - Weight : 10 g
  • Outline dimensions :19mm x 15.5mm x 15mm
