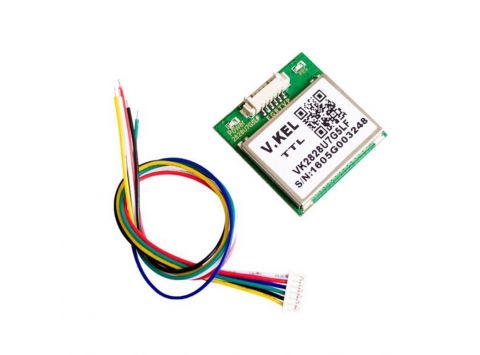

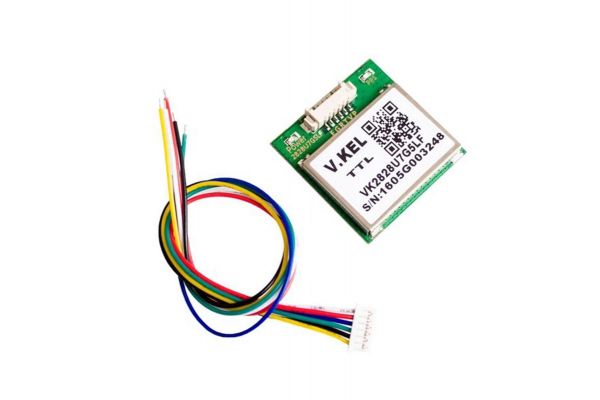

Module GPS VK2828U7G5LF (H36)

  • Mã SP:
    MUD000118 H36
  • Giá cũ:
    150,000VND
  • Giá:
    100,000VND
  • Lượt xem:
    151
  • Số lượng:
  • Chip UBX-G7020-KT
  • Support 3.3 ~ 5VDC 30mA
  • Data rate: 9600 BPS (default) [optional: 1200 2400 4800 19200 38400 57600 115200 230400 460800 921600]
  • The output statements: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, vacations, GLL) protocol data, can be arbitrary set match
  • The data refresh rate: 1 hz - 5 hz refresh rate
  • PPS indicator light: before positioning normally on or off; After positioning flashing
  • AGPS: support independent auxiliary positioning system
  • Receiving frequency band: L1 (1575.42 MHz)
  • Tracking channels: 50
  • Support the DGPS [WAAS and EGNOS and MSAS]
  • Tracking sensitivity: - 162 DBM
  • Capture sensitivity: - 146 DBM
  • Cold start time: 32 s (AVG)
  • Warm start time: 32 s (AVG)
  • Warm start time: 1 s (AVG)
  • To capture time: 0.1 s (AVG)
  • Operating temperature: - 30 ℃ to + 80 ℃
