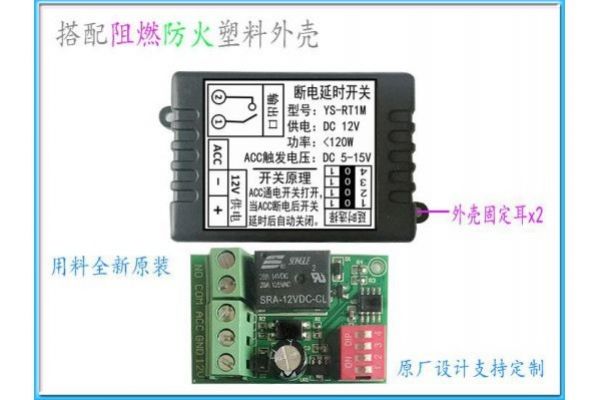

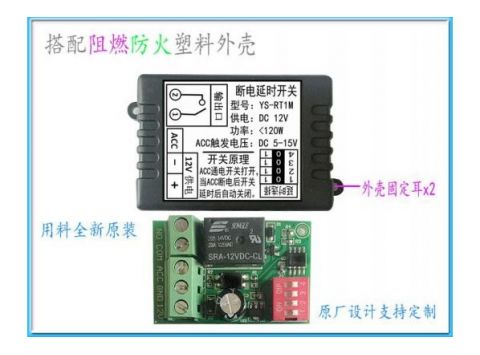

Module tạo trễ YS-RT1M ON-OFF Relay 12v (H19)

  • Mã SP:
    YS-RT1M
  • Giá cũ:
    90,000VND
  • Giá:
    80,000VND
  • Lượt xem:
    2353
  • Số lượng:
  • Mô tả:
    Module delay 1 relay 12V điều khiển đóng cắt Relay từ 0.5s-120s, sử dụng công tắc DIP gạt, set up đơn giản, độ chính xác cao.

Product description:

Name: Car power failure delay switch

Model: YS-RT1T

Specification: 50x35x22mm

Supply voltage: DC 12V

Working current: 68ma (current after the trigger switch is turned on)

Output control voltage: DC 0-14V, AC 0-125V

Output control current: <11A

Working temperature: -20 ° C to 70 ° C

Working principle: After the device is powered on, the device will delay the output for a period of time.

Second, the working principle of the switch

This switch is the power-on delay open function. When the power supply port is powered on, the switch will time according to the preset time. The switch will not turn on until the time is up. The main function is to avoid damage to the load device, splash screen and abnormal restart in order to avoid the unstable current and voltage of the power supply.

Third, the scope of application

    Household switch control - household products such as exhaust fans and heat sinks

    Automotive electronic control--navigation, media sound effects, door and window delay lifting, etc.

    Industrial Equipment Control--Access Control Equipment Control--Warehouse, Walkway Lighting

    Car lights, headlights off, etc.

Fourth, the test method

     1. Connect the load circuit at the output port

     2, choose the delay time

     3. When the power is turned on, the switch will delay after the preselected time and then turn on.
