Manufacturer |
Panasonic Electronic Components - Semiconductor Products |
Manufacturer Part Number |

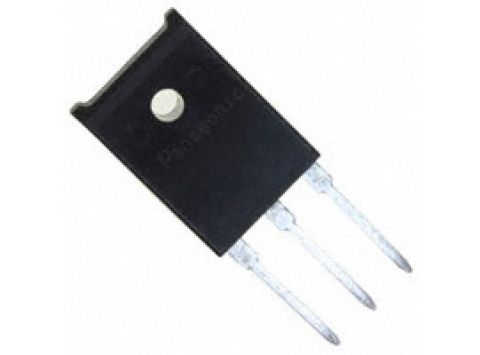

2SC3507 |
Description |
TRANS NPN 800VCEO 5A TOP-3F |
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
Packaging |
Bulk |
Transistor Type |
NPN |
Current - Collector (Ic) (Max) |
5A |
Voltage - Collector Emitter Breakdown (Max) |
800V |
Vce Saturation (Max) @ Ib, Ic |
1.5V @ 600mA, 3A |
Current - Collector Cutoff (Max) |
- |
DC Current Gain (hFE) (Min) @ Ic, Vce |
6 @ 3A, 5V |
Power - Max |
3W |
Frequency - Transition |
6MHz |
Mounting Type |
Through Hole |
Package / Case |
TOP-3F |
Supplier Device Package |
TOP-3F-A1 |
