Manufacturer Part Number |
LPC1751FBD80,551 |
|
Description |
IC ARM CORTEX MCU 32K 80-LQFP |
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
Datasheets |
LPC1751,52,54,56,58,59 |
|

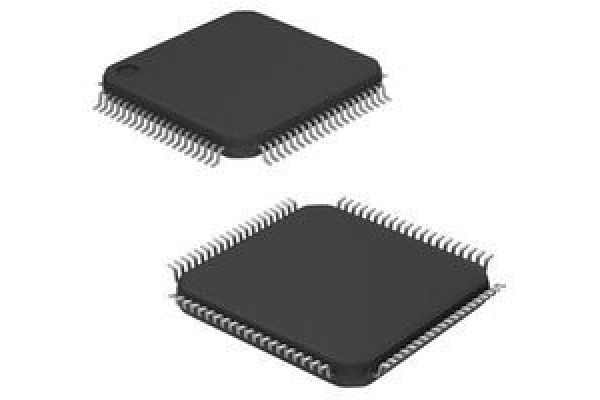

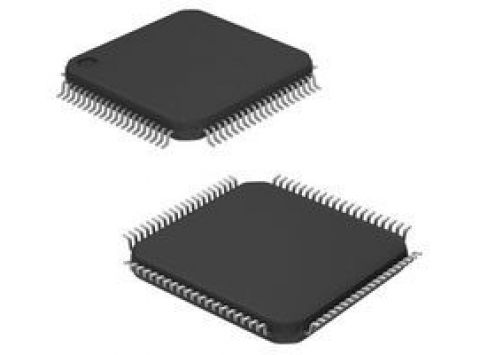

Product Photos |
80-LQFP |
|
Product Training Modules |
LPC1700 Microcontroller |
|
Video File |
LPCZone - Motor Control & USB |
|
Featured Product |
OLED SmartSwitch™ & SmartDisplay™ |
|
Standard Package |
119 |
|
Category |
Integrated Circuits (ICs) |
|
Family |
Embedded - Microcontrollers |
|
Series |
LPC17xx |
|
Core Processor |
ARM® Cortex-M3™ |
|
Core Size |
32-Bit |
|
Speed |
100MHz |
|
Connectivity |
CAN, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB |
|
Peripherals |
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
|
Number of I /O |
52 |
|
Program Memory Size |
32KB (32K x 8) |
|
Program Memory Type |
FLASH |
|
EEPROM Size |
- |
|
RAM Size |
8K x 8 |
|
Voltage - Supply (Vcc/Vdd) |
2.4 V ~ 3.6 V |
|
Data Converters |
A/D 6x12b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C |
|
Package / Case |
80-LQFP |
|
Packaging |
Tray |
|
Catalog Page |
757 (US2011 Interactive) |
|
For Use With |
622-1005-ND - USB IN-CIRCUIT PROG ARM7 LPC2K |
|
Other Names |
568-4788 |
