Manufacturer |
ON Semiconductor |
Packaging |
Bulk |
Part Status |
Obsolete |
Transistor Type |
NPN - Darlington |
Current - Collector (Ic) (Max) |
4A |
Voltage - Collector Emitter Breakdown (Max) |
100V |
Vce Saturation (Max) @ Ib, Ic |
2.5V @ 30mA, 1.5A |
Current - Collector Cutoff (Max) |
500µA |
DC Current Gain (hFE) (Min) @ Ic, Vce |
750 @ 1.5A, 3V |
Power - Max |
40W |
Operating Temperature |
-55°C ~ 150°C (TJ) |
Mounting Type |
Through Hole |

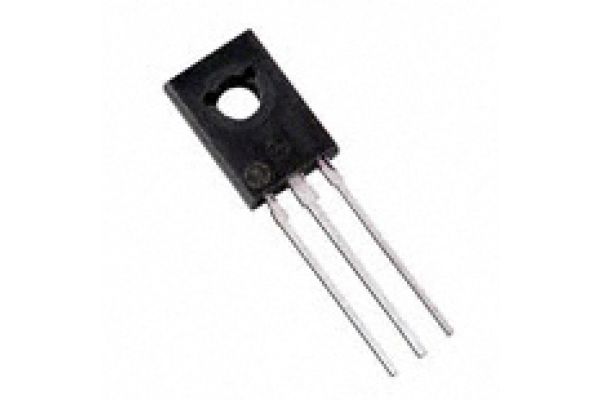

Package / Case |
TO-225AA, TO-126-3 |
Supplier Device Package |
TO-225AA |
