Manufacturer |
ON Semiconductor |
Transistor Type |
NPN - Darlington |
Current - Collector (Ic) (Max) |
8A |
Voltage - Collector Emitter Breakdown (Max) |
100V |
Vce Saturation (Max) @ Ib, Ic |
4V @ 80mA, 8A |
Current - Collector Cutoff (Max) |
10µA |
DC Current Gain (hFE) (Min) @ Ic, Vce |
1000 @ 4A, 4V |
Power - Max |
1.75W |
Frequency - Transition |
4MHz |
Operating Temperature |
-65°C ~ 150°C (TJ) |
Mounting Type |
Surface Mount |

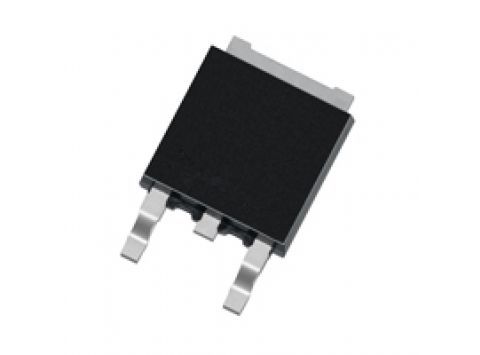

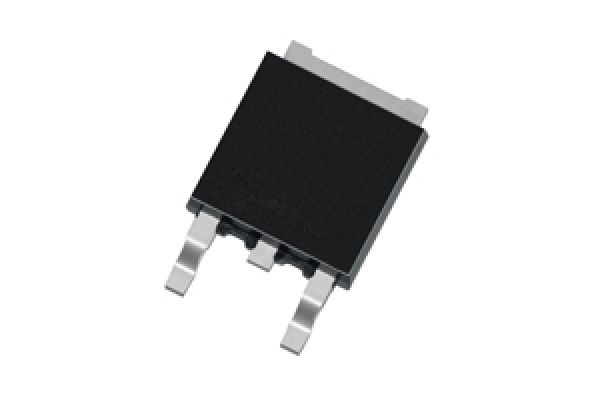

Package / Case |
TO-252-3, DPak (2 Leads + Tab), SC-63 |
Supplier Device Package |
DPAK |
Base Part Number |
MJD122 |
