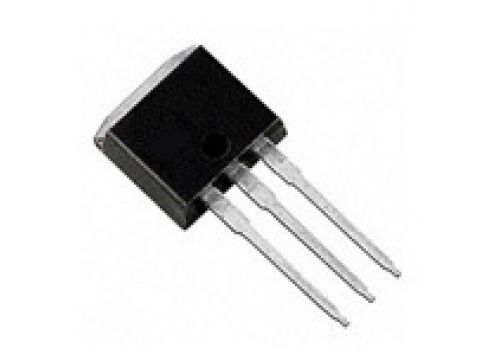

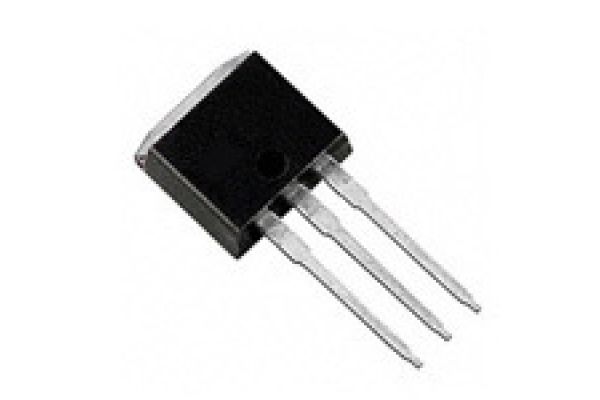

IRF3205L

  • Mã SP:
    MUD034A038
  • Giá:
    11,500VND
  • Lượt xem:
    3112
  • Số lượng:
  • Mô tả:
    N-Channel 55V 110A (Tc) 200W (Tc) Through Hole TO-262

Tính năng

Type

Description

Categories

Discrete Semiconductor Products



Transistors - FETs, MOSFETs - Single

Manufacturer

Infineon Technologies

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

55V

Current - Continuous Drain (Id) @ 25°C

110A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

8mOhm @ 62A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

146nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

3247pF @ 25V

FET Feature

-

Power Dissipation (Max)

200W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-262

Package / Case

TO-262-3 Long Leads, I²Pak, TO-262AA
