Manufacturer |
ON Semiconductor |
Transistor Type |
NPN |
Voltage - Collector Emitter Breakdown (Max) |
15V |
Frequency - Transition |
1.1GHz |
Noise Figure (dB Typ @ f) |
- |
Gain |
- |
Power - Max |
400mW |
DC Current Gain (hFE) (Min) @ Ic, Vce |
97 @ 1mA, 5V |
Current - Collector (Ic) (Max) |
50mA |
Operating Temperature |
150°C (TJ) |
Mounting Type |
Through Hole |
Package / Case |

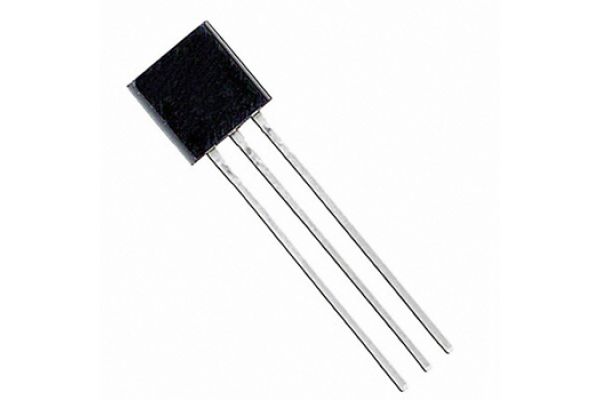

TO-226-3, TO-92-3 (TO-226AA) |
Supplier Device Package |
TO-92-3 |
