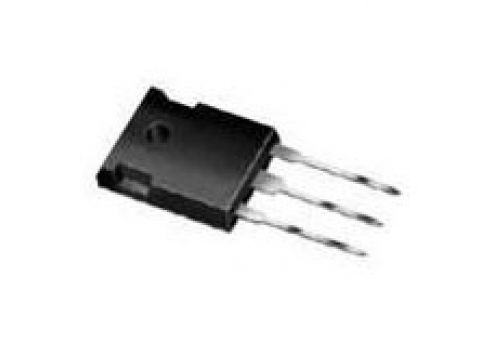

SPW47N60C3FKSA1

  • Mã SP:
    MUD034A067
  • Giá:
    33,500VND
  • Lượt xem:
    2865
  • Số lượng:
  • Mô tả:
    MOSFET N-CH 650V 47A TO-247

Tính năng

Manufacturer

Infineon Technologies

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

650V

Current - Continuous Drain (Id) @ 25°C

47A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

70 mOhm @ 30A, 10V

Vgs(th) (Max) @ Id

3.9V @ 2.7mA

Gate Charge (Qg) (Max) @ Vgs

320nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

6800pF @ 25V

FET Feature

-

Power Dissipation (Max)

415W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PG-TO247-3

Package / Case

TO-247-3
