Manufacturer |
Infineon Technologies |
FET Type |
N-Channel |
Technology |
MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) |
200V |
Current - Continuous Drain (Id) @ 25°C |
9.3A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) |
10V |
Rds On (Max) @ Id, Vgs |
300 mOhm @ 5.4A, 10V |
Vgs(th) (Max) @ Id |
4V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs |
35nC @ 10V |
Vgs (Max) |
±20V |
Input Capacitance (Ciss) (Max) @ Vds |
575pF @ 25V |
FET Feature |
- |
Power Dissipation (Max) |
82W (Tc) |
Operating Temperature |
-55°C ~ 175°C (TJ) |
Mounting Type |
Through Hole |
Supplier Device Package |

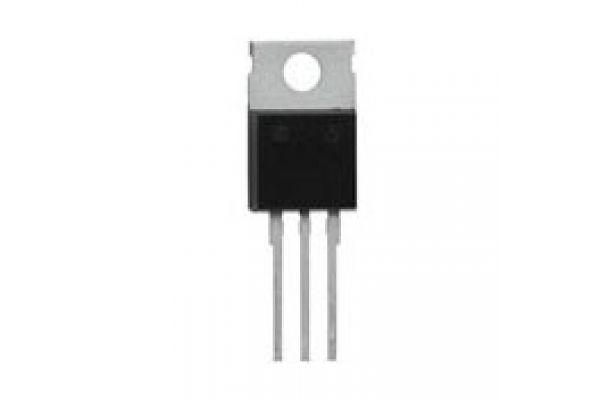

TO-220AB |
