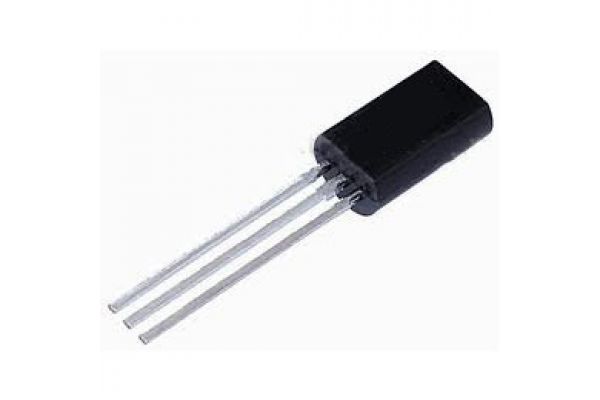

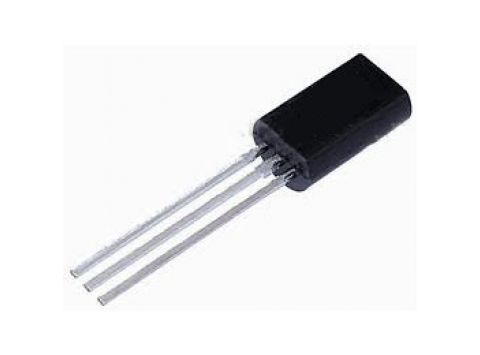

KSA1013
Manufacturer: |
Fairchild Semiconductor |
Product Category: |
Bipolar Small Signal |
RoHS: |
Yes |
Configuration: |
Single |
Transistor Polarity: |
PNP |
Mounting Style: |
Through Hole |
Package / Case: |
TO-92 |
Collector- Emitter Voltage VCEO Max: |
160 V |
Emitter- Base Voltage VEBO: |
- 6 V |
Continuous Collector Current: |
- 1 A |
Maximum DC Collector Current: |
- 1 A |
Maximum DC Collector Current: |
1 A |
Power Dissipation: |
0.9 W |
Maximum Operating Frequency: |
50 MHz |
Maximum Operating Temperature: |
+ 150 C |
DC Collector/Base Gain hfe Min: |
60 |
Minimum Operating Temperature: |
- 55 C |
Factory Pack Quantity: |
2000 |
Part # Aliases: |
