Designed for use in general purpose amplifier and switching applications.
• Collector–Emitter Saturation Voltage —VCE(sat) = 1.2 Vdc (Max) @ IC = 3.0 Adc
• Collector–Emitter Sustaining Voltage —
VCEO(sus) = 60 Vdc (Min) — TIP31A, TIP32A
VCEO(sus) = 80 Vdc (Min) — TIP31B, TIP32B
VCEO(sus) = 100 Vdc (Min) — TIP31C, TIP32C
• High Current Gain — Bandwidth Product
fT = 3.0 MHz (Min) @ IC = 500 mAdc

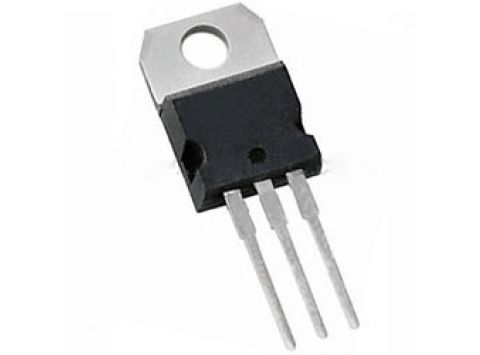

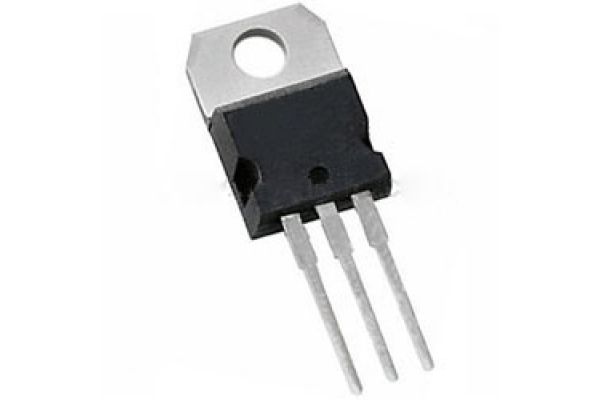

• Compact TO–220 AB Package
