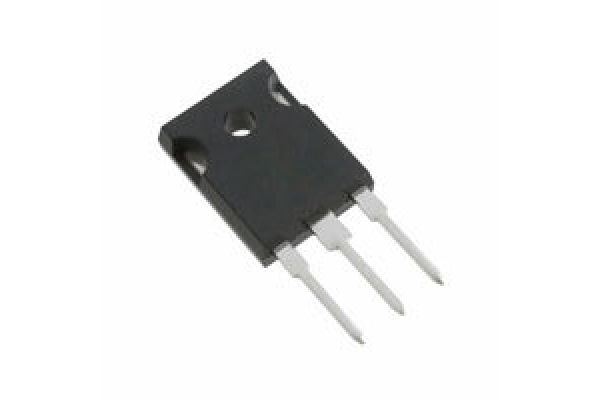

IRFP260M

  • Mã SP:
    MUD034A084
  • Giá:
    42,500VND
  • Lượt xem:
    3009
  • Số lượng:
  • Mô tả:
    MOSFET N-CH 200V 50A TO-247AC

Tính năng

Manufacturer

Infineon Technologies

Series

HEXFET®

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

200V

Current - Continuous Drain (Id) @ 25°C

50A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

40 mOhm @ 28A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

234nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

4057pF @ 25V

FET Feature

-

Power Dissipation (Max)

300W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole
