Manufacturer |
ON Semiconductor |
Transistor Type |
NPN |
Current - Collector (Ic) (Max) |
100mA |
Voltage - Collector Emitter Breakdown (Max) |
45V |
Vce Saturation (Max) @ Ib, Ic |
300mV @ 5mA, 100mA |
Current - Collector Cutoff (Max) |
500nA (ICBO) |
DC Current Gain (hFE) (Min) @ Ic, Vce |
400 @ 1mA, 5V |
Power - Max |
450mW |
Frequency - Transition |
270MHz |
Operating Temperature |
150°C (TJ) |
Mounting Type |
Through Hole |

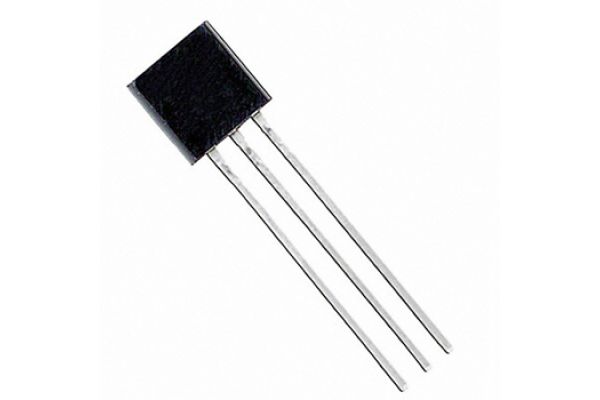

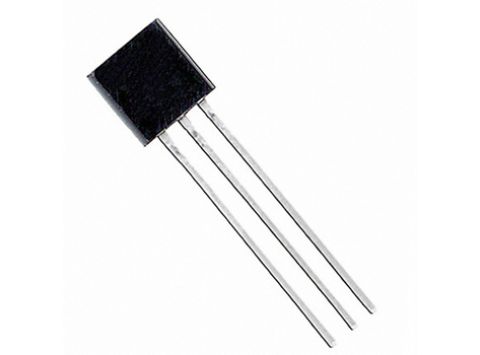

Package / Case |
TO-226-3, TO-92-3 (TO-226AA) |
Supplier Device Package |
TO-92-3 |
Base Part Number |
SS9014 |
