Datasheets |
2SK01980RL View all Specifications |
|

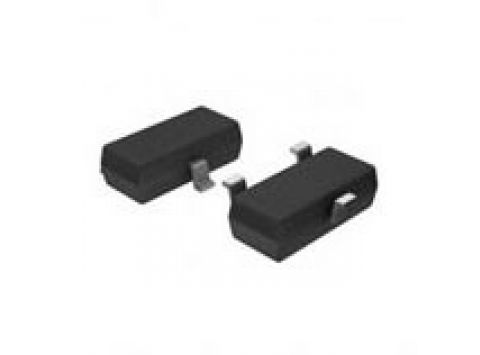

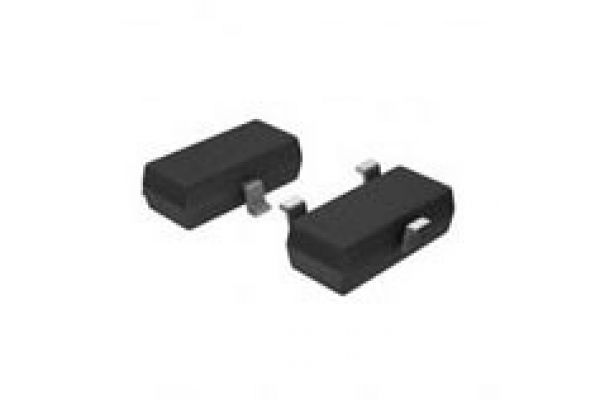

Product Photos |
MINI3 |
|
Catalog Drawings |
Mini Pkg 3-pin |
|
Standard Package |
1 |
|
Category |
Discrete Semiconductor Products |
|
Family |
JFETs (Junction Field Effect) |
|
Series |
- |
|
Current - Drain (Idss) @ Vds (Vgs=0) |
500µA @ 10V |
|
Drain to Source Voltage (Vdss) |
30V |
|
Current Drain (Id) - Max |
20mA |
|
FET Type |
N-Channel |
|
Voltage - Breakdown (V(BR)GSS) |
- |
|
Voltage - Cutoff (VGS off) @ Id |
100mV @ 10µA |
|
Input Capacitance (Ciss) @ Vds |
14pF @ 10V |
|
Resistance - RDS(On) |
- |
|
Mounting Type |
Surface Mount |
|
Packaging |
Digi-Reel® |
|
Package / Case |
Mini3-G1 (SC-59) |
|
Supplier Device Package |
Mini3-G1 |
|
Power - Max |
150mW |
|
Catalog Page |
1267 (US2011 Interactive) |
|
Other Names |
2SK01980RLDKR |
