Manufacturer |
Littelfuse Inc. |
|
Manufacturer Part Number |

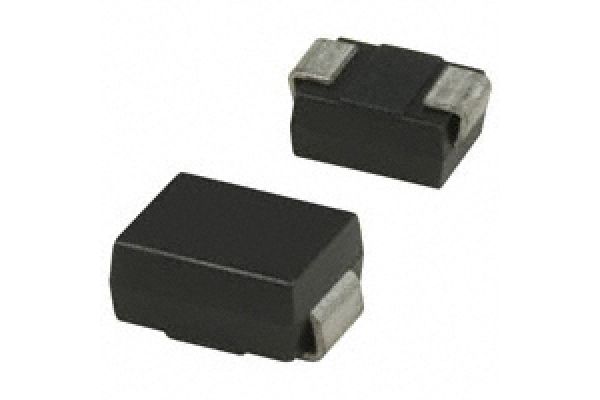

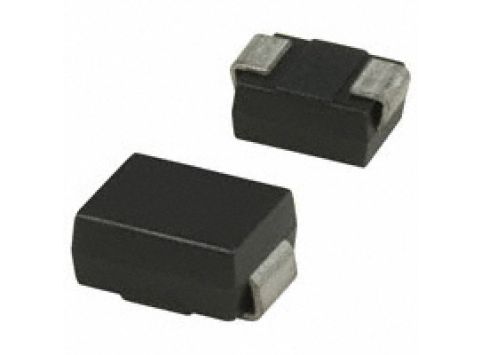

SMAJ36A |
|
Description |
TVS DIODE 36VWM 58.1VC SMA |
|
Lead Free Status / RoHS Status |
Lead free by exemption / RoHS Compliant |
|
Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
Category |
Circuit Protection |
|
Family |
TVS - Diodes |
|
Series |
SMAJ |
|
Packaging |
Cut Tape (CT) |
|
Type |
Zener |
|
Unidirectional Channels |
1 |
|
Bidirectional Channels |
- |
|
Voltage - Reverse Standoff (Typ) |
36V |
|
Voltage - Breakdown (Min) |
40V |
|
Voltage - Clamping (Max) @ Ipp |
58.1V |
|
Current - Peak Pulse (10/1000µs) |
6.9A |
|
Power - Peak Pulse |
400W |
|
Power Line Protection |
No |
|
Applications |
General Purpose |
|
Capacitance @ Frequency |
- |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AC, SMA |
|
Supplier Device Package |
DO-214AC (SMA) |
