Manufacturer |
Fairchild Semiconductor |
|
Manufacturer Part Number |
FQP11N40C |
|
Description |
MOSFET N-CH 400V 10.5A TO-220 |
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
Datasheets |
FQP11N40C, FQPF11N40C |
|

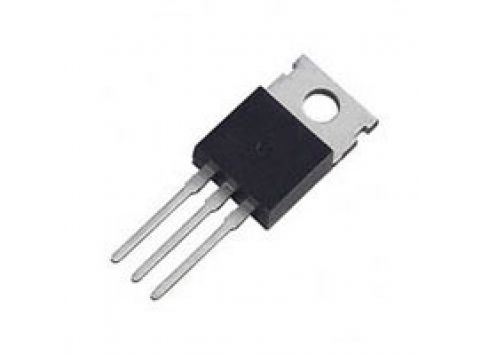

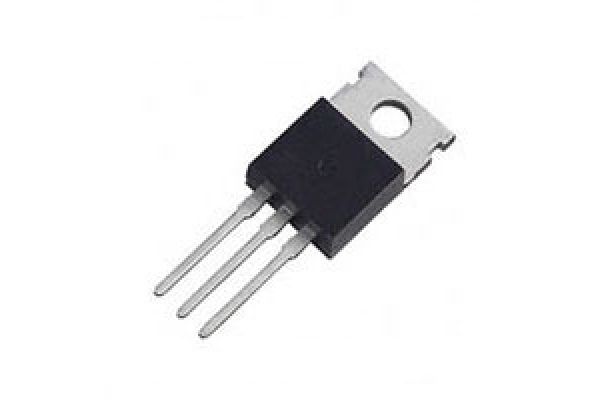

Product Photos |
TO-220-3 Pkg |
|
Product Training Modules |
High Voltage Switches for Power Processing |
|
Standard Package |
50 |
|
Category |
Discrete Semiconductor Products |
|
Family |
FETs - Single |
|
Series |
QFET™ |
|
FET Type |
MOSFET N-Channel, Metal Oxide |
|
FET Feature |
Standard |
|
Rds On (Max) @ Id, Vgs |
530 mOhm @ 5.25A, 10V |
|
Drain to Source Voltage (Vdss) |
400V |
|
Current - Continuous Drain (Id) @ 25° C |
10.5A |
|
Vgs(th) (Max) @ Id |
4V @ 250µA |
|
Gate Charge (Qg) @ Vgs |
35nC @ 10V |
|
Input Capacitance (Ciss) @ Vds |
1090pF @ 25V |
|
Power - Max |
135W |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-220-3 |
|
Supplier Device Package |
TO-220 |
|
Packaging |
Tube |
